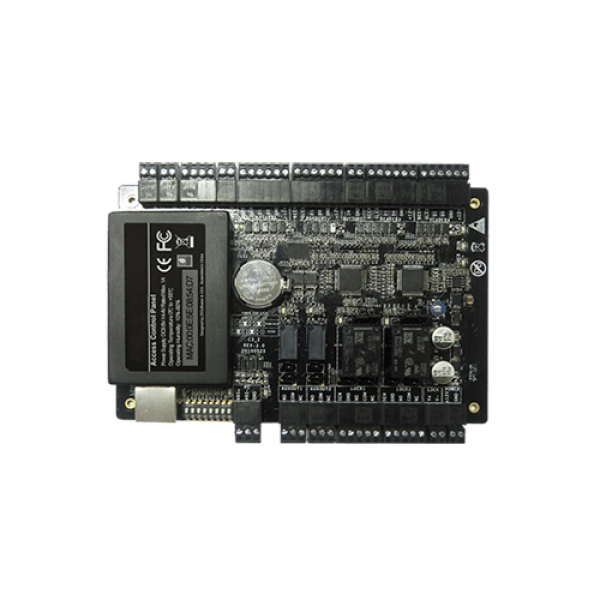

C3-200/400

single-product

C3-200/400

WiFi module (external) optional
TCP/IP and RS-485 communication
Built-in auxiliary input and output
Advanced access control functions
1-door, 2-door, 4-door models

Catégorie : Terminaux de contrôle d'accès

Disponibilité : En Stock

Fabricant : Dahua

Number of Doors Controlled 1 Door 2 Door 4 Door
Number of Readers Supported 2 4 4
Types of Readers Supported 26-bit Wiegand, others upon request 26-bit Wiegand, others upon request 26-bit Wiegand, others upon request
Number of Inputs 2 (Exit Device and Door Status, AUX) 6 (2 Exit Device, 2 Door Status, 2 AUX) 12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output) 4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output) 8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Card Holders Capacity 30,000 30,000 30,000
Log Events Capacity 100,000 100,000 100,000
Weight 7.4lbs (3.35kg) 7.5lbs (3.4kg) 7.8lbs (3.55kg)
Communication TCP/IP, RS-485 and WiFi optional TCP/IP, RS-485 and WiFi optional TCP/IP, RS-485 and WiFi optional
Enclosure Powder Coated Aluminium Powder Coated Aluminium Powder Coated Aluminium
Mounting Wall Mount Wall Mount Wall Mount
Recommended Power Supply 12V DC, 1.5A 12V DC, 1.5A 12V DC, 1.5A
Dimensions (Bundle Only) 15in.×3.15in.×11in.
380mm(L) X 80mm(W) X 280mm(H)
15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)
15in.×3.15in.×11in.
380mm(L)×80mm(W)×280mm(H)
Dimensions
(Board Only)
6.3in.×4.17in.
(160mm×106mm)
6.3in.×4.17in.
(160mm×106mm)
8.58in.×4.17in.
(218mm×106mm)
