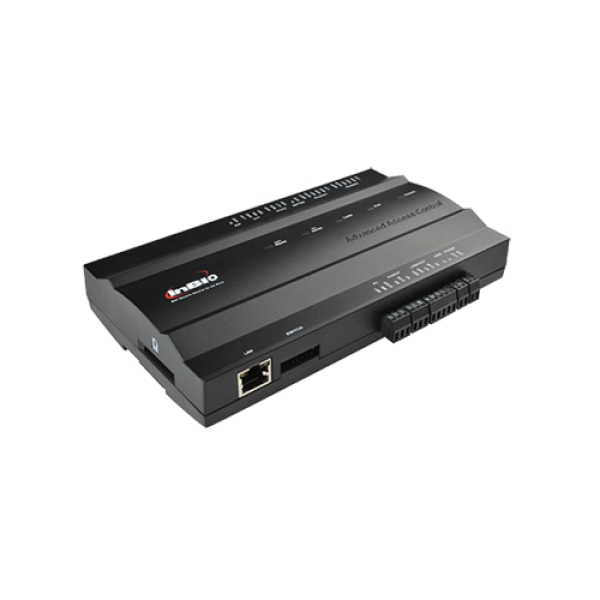

InBio160/260/460

single-product

InBio160/260/460

WiFi module (external) optional
 TCP/IP and RS-485 communication
  Aux RS485 for fingerprint reader
Wiegand interface for RFID reader
Built-in auxiliary input and output

Catégorie : Terminaux de contrôle d'accès

Disponibilité : En Stock

Fabricant : ZkTeco

  InBio-160 InBio-260 InBio-460
Number of doors controller 1 Door 2 Door 4 Door
Numbers of readers supported 4(2 RS-485 Reader,
2 26-bit wiegand reader)
8(4 RS-485 Reader,
4 26-bit wiegand reader)
12 (8 RS-485 Reader,
4 26-bit wiegand reader)
 Types of readers supported  26-bit Wiegand and RS485 FR Series Reader  26-bit Wiegand and RS485 FR Series Reader  26-bit Wiegand and RS485 FR Series Reader
 Number of Inputs  3(exit Device and Door Status, 1 AUX)  6( 2 Exit Device, 2 Door Status, 2 AUX)  12( 4 Exit Device, 4 Door Status, 4 AUX)
 Number of Outputs  2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)  4 (2-Form C Relay for Lock and 2-Form C Relay for Aux Output)  8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
 Card holders Capacity  30,000  30,000  30,000
 Fingerprint Capacity  3,000  3,000  3,000
 Log Events Capacity  100,000  100,000  100,000
 Communication  TCP/IP, RS-485 and WiFi optional TCP/IP, RS-485 and WiFi optional  TCP/IP, RS-485 and WiFi optional
 Package Dimension  350(L)×90(H)×300(W)mm  350(L)×90(H)×300(W)mm  350(L)×90(H)×300(W)mm
 Package Weight  3.6kg  3.6kg  3.7kg
 CPU  32 bit 400MHz CPU  32 bit 400MHz CPU  32 bit 400MHz CPU
 RAM  32M  32M  32M
 Flash Memory  128M  128M  128M
 Power  9.6V-14.4V DC  9.6V-14.4V DC  9.6V-14.4V DC
 Operating Temp  0-45 °C  0-45 °C  0-45 °C
 Operating Humidity  20% to 80%  20% to 80%  20% to 80%
