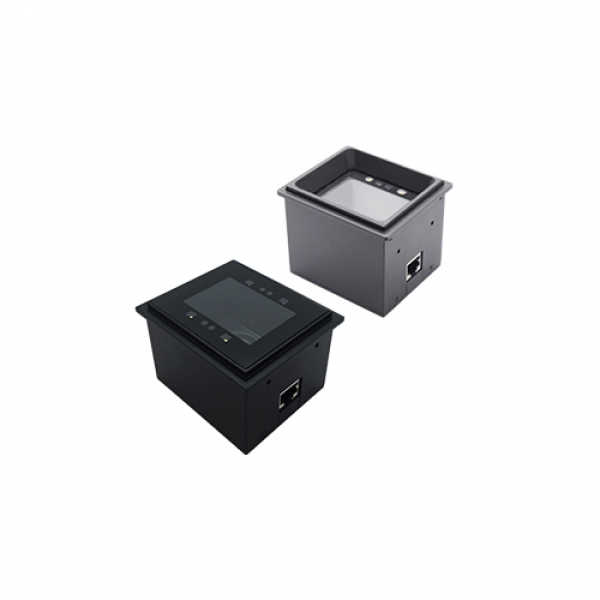

NLS-FM30

single-product

NLS-FM30

Type :Fixed Mount Scanner
Symbologies :1D/2D
Reading Mode :CMOS
Interface :RS232/USB
Category :Good for on-screen barcode

Catégorie : Accessoires

Disponibilité : En Stock

Fabricant : Newland

Performance Image Sensor 752*480 CMOS
Illumination White LED
Symbologies
2D: PDF417, Data Matrix, QR Code, Chinese Sensible Code.
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128 (FNC1, FNC2, FNC3), Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Resolution* ≥5mil
Scan Mode Sense mode, Continuous mode
Scan Angle** Pitch: ±40°, Roll: 360°, Skew: ±40°
Scan Window 31.5mm×46.5mm 38.3mm×60.4mm
Field of View Horizontal: 75°, Vertical: 50°
Min. Symbol Contrast* 25%
Interface RS-232, USB
Physical/
Electric
Dimensions 78.7(W)×67.7(D)×53(H)mm (max.) 78.7(W)×67.7(D)×62.5(H)mm (max.)
Weight 173g 195g
Notification Beep
Rated Power Consumption 534mW (typical)
Operating Voltage 5VDC±5%
Current@5VDC Operating Current: 108mA (typical), 114mA (max.)
Environmental Operating Temperature -20℃ to 60℃ (-4°F to 140°F)
Storage Temperature -40℃ to 70℃(-4°F to 158°F)
Humidity 5% to 95% (non-condensing)
ESD ±8 KV (air discharge); ±4 KV (direct discharge)
Certifications FCC Part15 Class B, CE EMC Class B
Accessories Cable
USB cable: Used to connect the scanner to a host device.
RS-232 cable: Used to connect the scanner to a host device.
Power Adapter DC5V power adapter to provide power for the scanner with RS-232 cable.
