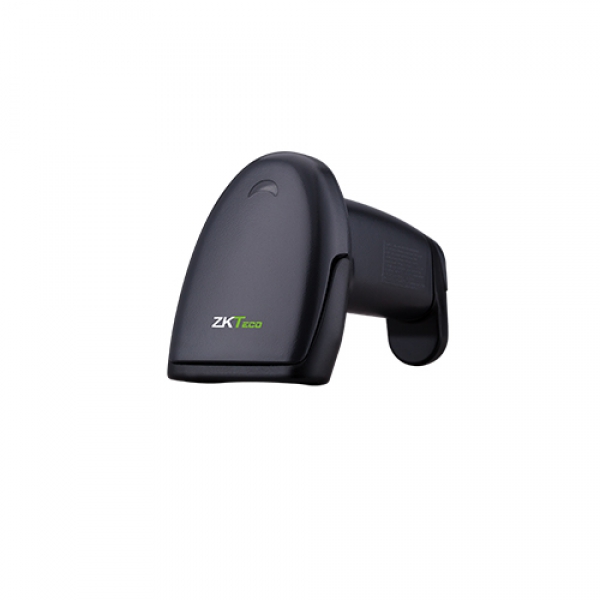

ZKB101
ZKB101
32-bit red laser scanner.
Water and fire resistant material with anti short circuit functions.
Available in Black and White. Provides ultra-wide voltage range and high performance electromagnetic compatibility.
Standard 10-wire RJ45 interface.
Wired USB connection.
Catégorie : Accessoires
Disponibilité : En Stock
Fabricant : ZkTeco
| Model Name | ZKB101 | ZKB102 |
| Kind | 32-bit red laser scanner. | 32-bit red light CCD scanner. |
| Types of Bar Code | EAN / JAN-8; EAN / JAN-13; UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard;, CODE-39; Interleaved 2/5; Standard 2/5; Matrix 2/5;, Industrial 2/5; China-Post; M: YES; MSI-PLESSEY; CODE-BAR; CODE-11 etc. | |
| Reading depth | 0-550mm (1.0mm bar code density in tests) | Maximum 500mm (0.5mm bar code density in tests) |
| Reading Angle | Vertical:70 °, Horizontal: 70 ° | Vertical: 60 °, Horizontal: 60 ° |
| Precision | > = 3mil | > = 2mil, easy identification of 3mil codes |
| Decoding Speed | 300 times / second | 400 times / second (150% higher than common CCD readers) |
| Decoding error rate | 1/8 million | 1/3 million |
| Electrostatic Discharge Rate | Download with Contact: 9KV, Air Download: 15KV | |
| Anti-Fall Protection | 1.8m fall-proof | |
| Dimensions | 139.5 * 71.1 * 89.9mm (L * W * H) | |
| Certifications | CE, FCC, ROHS, IP65, IEC60825 | |
| Energy | ||
| Voltage | 3.5-5.5V DC | 4.5-5.5V DC |
| Operating Current | 50mA | 80mA |
| Current at Rest | 25mA | 55mA |
| Peak Peak | 100mA | 120mA |
| Ultra-low Energy Consumption | <1mA (rest) (Optional) | <1mA ( (in suspended mode)) |
| Interface | ||
| USB-HID | Compatible with USB 1.1 interface or higher. | Compatible with USB 2.0 interface or higher. |
| UART | Transmission speed range 1200-115200 bps | Transmission speed range 2400-115200 bps |
| Work environment | ||
| Operating Temperature | -10 ° C ~ + 50 ° C | 0 ° C ~ + 50 ° C |
| Storage Temperature | -20 ° C ~ + 60 ° C | -20 ° C ~ + 70 ° C |
| Operational Humidity | 5% ~ 95% Relative (condensation) | 20% ~ 95% Relative (non-condensing) |
