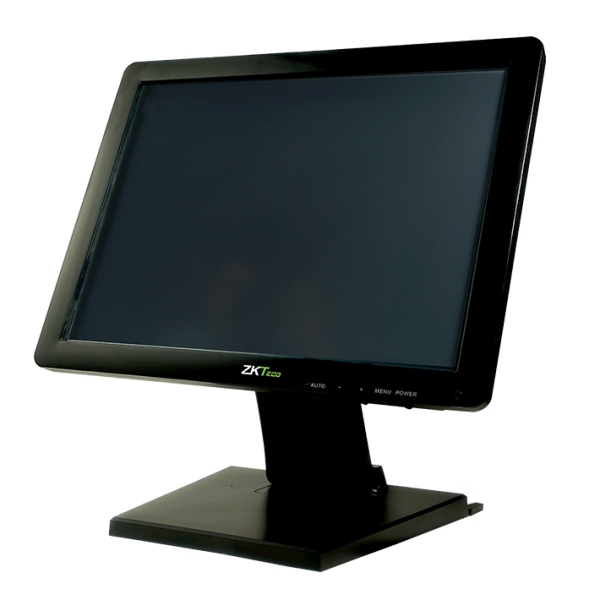

ZKD15

single-product

ZKD15

15" AUO TFT LCD Panel
5 wires touch screen by Higgstec (anti-high temperature)
12V 3A Power Adapter

Catégorie : Accessoires

Disponibilité : En Stock

Fabricant : ZkTeco

Model Name ZKD15
LCD Type
Type 15" AUO TFT LCD Panel
Dimension 350*44*275mm (L*W*H)
Display Area 305×230 (mm)
Max. Resolution 1024×768 at 60Hz
Color 16.7 million
Brightness 250cd/m2
Response Time 5ms
Visual Angle (Typ.at CR > 10) Horizontal
(left/right):85°/85°
Vertical (upper/lower):V80°/80°
Contrast Ratio 1000:1
Video Input Format VGA
Frequency (H/V) 30~80KHz / 60~75Hz
MTBF 50,000 hours
LED Backlight Lifespan 50,000 hours
Touch Panel
Type 5 wires capacitive touch (optional)
Interface USB
Response Time USB: 10 ms
Power Supply
Type External power adapter
Power Adapter 12V 3A Power Adapter
Input Voltage 100-240 VAC, 50-60 Hz
Output Voltage 12 volts at 4 amps max
Power Consumption 12W(Max)
Work environment
Operating Temp. 0°C~50°C
Storage Temp. -20°C~60°C
Operating Humidity 5%~90%
Storage Humidity 5%~90%
Appearance
Installation Mode 1) VESA 75 mm
2) Using a horizontal or vertical mounting support
OSD Control
Button AUTO, +, POWER, -, MENU
Function Brightness, Contrast, Auto correction, Phase, Clock, Row and column position, Language,Function setting, Reset
Other
Accessory Power cable; Power adapter; USB cable; VGA cable
Warranty Period 1 year
